Description

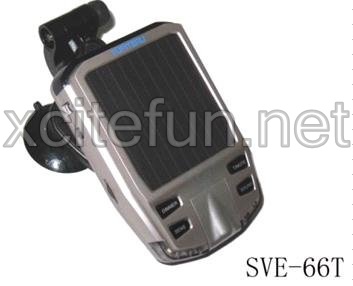

SVE-66T 6 BAND (X/K/New K/Ku/Ka/Laser) Radar Detector (car radar)
Basic Operations Cordless Type (powered by solar battery)
1.Responds to all types of radar currently in use by police
2. Detection area: Front/rear
2. Laser detecting: 360 degree laser
3. Optimize selectivity: city/highway
4. Alert type: Voice/Audio/visual
5. Auto Mute function

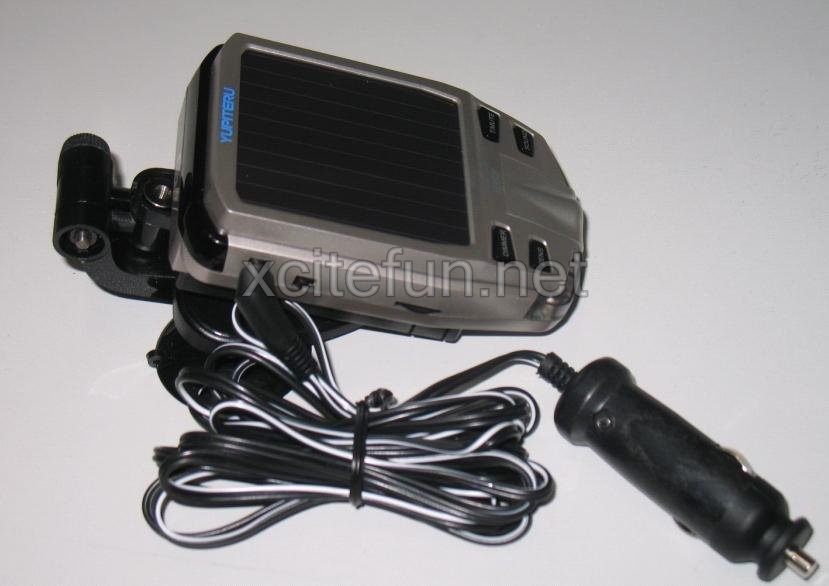

6. Power : Solar/Power Power cord
7. Product Size : 72*29*106(mm)
1. [PWR] (Power) switch:
This is the switch to turn the power ON of the unit.
2. [DIMMER] button:
Pressing this button makes the pilot lamps less brighter.
This button is useful when driving the car in the night or to make the battery consumption less.
3. [SENS] button:
This button is to change the level of sensitivity to detect the radar signals.
City mode (lower sensitivity): Sensitivity LED [(((Y)))] will be lit in red. This mode is suitable when driving the car in the city area in low speed.
Highway mode (normal sensitivity): Sensitivity LED (Antenna mark) will not be lit. This mode is suitable when driving the car in suburb or on highway in rather high speed.
4. [T/MUTE] button:
This is to test the alarm sound or mute the alarm. Also this is used to adjust the volume of the alarm sound.
5. [SOUND] button (Electric alarm/Voice alarm select switch):
You can change the alarm type between the electric sound alarm and the voice alarm (in Chinese).
6. X/K/New K/Ku/Ka/Laser 6-Band detection:
SVE-66R detects X, K, New K, Ku, Ka and Laser band and alarms differently as follows.
X band:
Alarm: Caught the radar signal intermittent alarm (pi..pi..pi, 5 sec.) Voice alarm Continual alarm (pipipipi.)
[X/Ka] LED: Lit in Red
K/New K band:
Alarm: Caught the radar signal intermittent alarm (bi..bi..bi, 5 sec.) Voice alarm Continual alarm (bibibibi.)
[K/Ku/L] LED: Lit in Yellow
Ku band:
Alarm: Caught the radar signal intermittent alarm (kyui..kyui..kyui, 5 sec.) Voice alarm Continual alarm (kyui,kyui,kyui.)
[K/Ku/L] LED: Lit in Green
Ka band:
Alarm: Caught the radar signal intermittent alarm (kyolo..kyolo..kyolo, 5 sec.)
Voice alarm Continual alarm (kyolo.kyolo.kyolo.)
[X/Ka] LED: Lit in Green
lASER band:
Alarm: intermittent alarm (piroro..piroro..piroro, 5 sec.)
Voice alarm Continual alarm (piroro,piroro,piroro.)
[K/Ku/L] LED: Lit in Orange
7. Pilot & Battery lamp

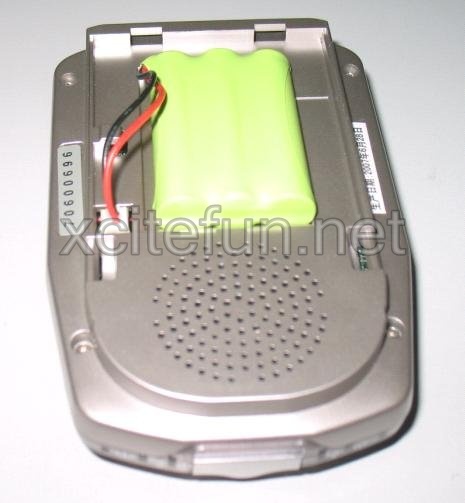

Pilot & Battery lamp will blink after the power is ON. And it indicates the battery level while pressing TEST/MUTE button (lit in green: full battery, lit in orange: a little low, lit in red: need recharging). The low battery will be alarmed by blinking of Pilot & Battery lamp and low battery alarm sound. In the case, please recharge the battery using the cigarette lighter plug cord.
8. Auto Quiet/Dimmer function:
When the radar detector keeps receiving the radar signal for more than 30 seconds, the alarm sound becomes smaller and alarm lamp becomes less bright.
