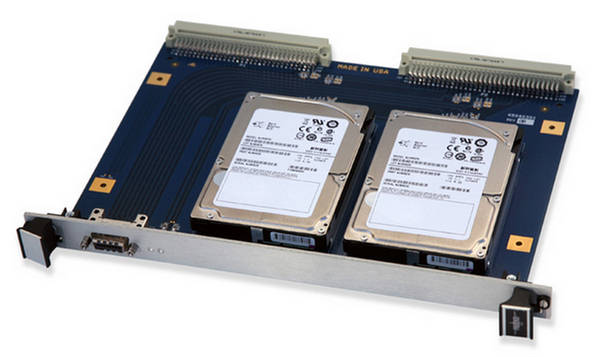

Phoenix VS1-250-SSD Solid State Disk Module delivers high capacity, high performance data storage for military, aerospace and industrial applications requiring rugged, secure and durable mass data storage. This 6U, single-slot module houses one or two each 2.5" SAS or SATA SSDs of up to 256GB per device and can be interfaced through its front panel connector or its P2 connector.The high speed module will sustain R/W data rates of 120MB/sec with an access time of 0.5 msec. The VS1-250-SSD has an operating temperature range from -40o to 85o C and functions at an altitude greater than 80,000 feet. The VS1-250-SSD also complies with current defense department security standards providing multiple levels of secure erase techniques.
FEATURES
SAS or SATA SSDs
Burst data transfer rate to 300MB/sec
Sustained data transfer to 120MB/sec
Total capacity to 512GB
Operational temperature from -40o to 85o C
Individual point-to-point device connectivity
Low power consumption
1,300,000 MTBF
Integrated SLC NAND Flash
Meets military and IRIG 106-07 declassification standards
Advanced flash management for enhanced reliability and durability
Front panel or P2 connector data interface
80,000 feet operational altitude
50g, 11 ms operational shock
16g rms, 10-2000Hz random vibration
